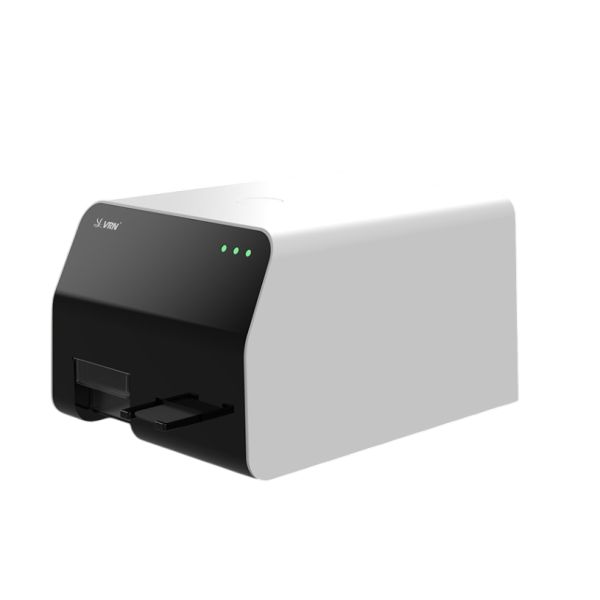

VRN EQ600 Imaging Plate Scanner
The VRN EQ-600 is a high-resolution digital phosphor plate (PSP) scanner that delivers fast, clear intraoral X-ray imaging with support for sizes 0–3, 35μm pixel resolution, 16-bit depth, and automatic erasure for efficient, film-like digital diagnostics in modern dental practices.
SKU
DW2388
The VRN EQ-600 Digital Phosphor Plate Scanner is a reliable and cost-effective solution for transitioning from traditional film to digital intraoral radiography.
Using advanced APS CMOS detector technology, it produces high-quality images with excellent contrast and detail, supporting diagnostic needs for patients of all ages through four plate sizes (0, 1, 2, and 3).
With a rapid 15-second readout time, built-in automatic plate erasure, and user-friendly UT-Dental software, the EQ-600 streamlines workflow while reducing radiation exposure and eliminating chemical processing.
Its compact design, dual USB/Ethernet connectivity, and broad compatibility with Windows systems make it easy to integrate into any dental operatory.
CE-certified and built for daily clinical use, the VRN EQ-600 offers crystal-clear imaging, improved diagnostic accuracy, and enhanced patient comfort — making it an excellent choice for general practices, endodontics, periodontics, and implant dentistry.
- Model: VRN EQ-600
- Technology: Phosphor Plate Scanner (PSP) with APS CMOS detector
- Pixel Size: 35μm (selectable)
- Grey Scale: 16-bit (65,536 grey levels)
- Supported Plate Sizes: 0 (22×31mm), 1 (24×40mm), 2 (31×41mm), 3 (27×54mm)
- Readout Time: 15 seconds
- Eraser: Built-in automatic
- Active Area: 32 × 54 mm
- Resolution: Standard & High-resolution modes
- Interface: USB 2.0 (480 Mbps) / Ethernet (100 Mbps)
- Software: UT-Dental (Windows XP/7/8/10 compatible)
- Dimensions (H×W×D): 305 × 211 × 182 mm
- Net Weight: 6 kg
- Power Supply: 100–240V AC, 50/60Hz, 1.5A
- Operating Temperature: 10°C to 40°C
- Certification: CE
The VRN EQ-600 employs APS CMOS sensor technology with a selectable 35μm pixel size to capture fine details and 16-bit (65,536 grey levels) data depth for superior image contrast and diagnostic precision. It supports standard and high-resolution scanning modes across all common intraoral plate sizes, delivering clear visualization of caries, bone structure, root canals, and periapical areas.
The system features fast 15-second image readout, an embedded automatic eraser for immediate plate reuse, and constant high-speed data transfer via USB 2.0 or Ethernet. Intelligent power management and a compact footprint (305 × 211 × 182 mm) ensure reliable performance with minimal space requirements. The included UT-Dental software provides intuitive image processing, enhancement tools, and easy integration with practice management systems.
