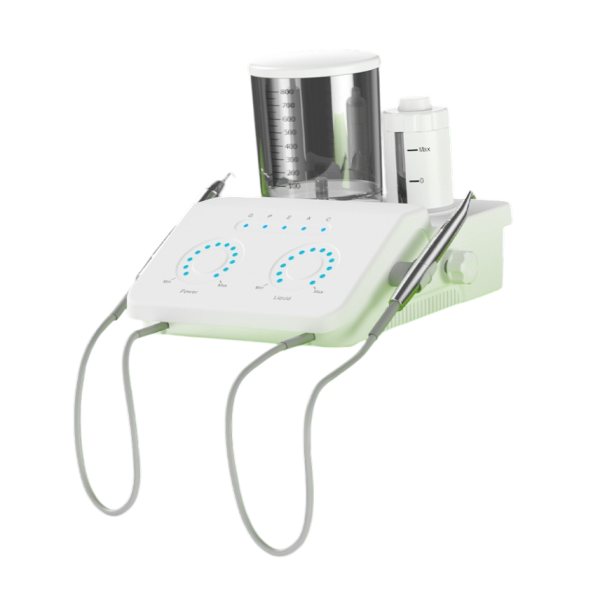

VRN DQ40 Periodontal Therapy System, 5 in 1
The VRN DQ-40 is a compact, high-performance 2-in-1 ultrasonic scaler and air polisher that delivers efficient periodontal therapy, combining precise scaling and effective air polishing in a single, user-friendly unit.
SKU
DW2380
The VRN DQ-40 is a high-performance 2-in-1 ultrasonic periodontal therapy system that integrates ultrasonic scaling and air polishing functions into a single, compact unit.
Engineered for precision and efficiency, this advanced device enables clinicians to perform effective supragingival and subgingival debridement, root planing, and air polishing with superior control and patient comfort.
Featuring an intuitive LCD touchscreen interface, the DQ-40 allows seamless mode switching and real-time parameter adjustments, streamlining periodontal procedures while enhancing clinical outcomes.
Built with reliability and safety in mind, the system is CE certified and ideal for modern dental clinics and periodontal specialists seeking versatile, high-quality equipment.
Input Voltage:220 V～50/60 Hz
Main Unit Input:25V 50Hz 1.3A
Wireless Footswitch Battery:Battery No.5 *2
Primary Tip Vibration Excursion:Minimum: 1 μm;deviation: -50%;maximum: 100μm,deviation: +50%
Half-excursion Force:Minimum :0.1 N;deviation: -50%;maximum: 5 N;deviation: +50%
Tip Vibration Frequence:30 kHz±5 KHz
Tip Output Power:3 W～20 W
Intake Pressure:5 bar~6 bar（0.5 MPa~0.6 MPa）
Leaving Water Temp Of Sanblasting System:0℃～45℃
Dental Sandblasting Powder Requriement:Applicable only to URIT approved dental sandblasting powder
Fuse:T2AH250V
Fuse Power:T1AL250V
Weight of Main Unit:2.1 kg
Weight of Power Adapter:0.9 kg
Dimension of Main Unit:310mmX370mmX170mm
Receiving Sensitivity:-114 dB
Receiving Frequence:2.4G-2.5G
The VRN DQ-40 Ultrasonic Periodontal Therapy System combines ultrasonic vibration technology with air polishing capability to deliver comprehensive periodontal care. Operating at a nominal frequency of 30 kHz ± 5 kHz, the ultrasonic scaler provides precise linear tip motion with an amplitude range of 1–100 μm, enabling efficient removal of calculus, plaque, and biofilm while minimizing damage to tooth structure.
The integrated air polishing function utilizes controlled air and water pressure to deliver fine polishing powder, effectively removing surface stains and subgingival biofilm with minimal invasiveness. The system supports adjustable water flow and power settings through its user-friendly touchscreen, ensuring optimal performance across a wide range of clinical applications, from routine prophylaxis to advanced periodontal therapy.
With its compact and ergonomic design, the DQ-40 offers excellent stability and ease of use in daily clinical practice, making it a valuable addition to any professional dental operatory.
