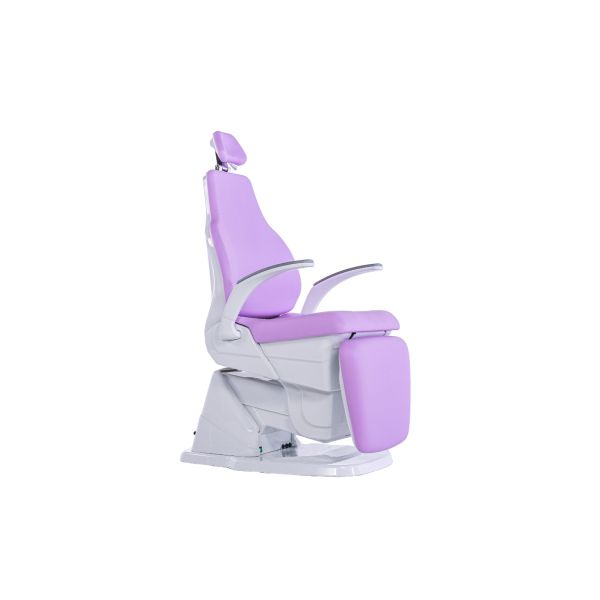

Tecnodent Linda Evo 'knee break' Dental Chair
Versatile and compact, ergonomic and comfortable, perfectly suitable to treat all patients, even children, elderly people, and persons with reduced mobility, for both dental and medical procedures.
210kg lifting capacity
The chair complies with the essential safety requirements as prescribed under the European MDR 2017/745
SKU
DW4510
- Fully electromechanical upward, downward and tilt movements of the backrest
- Backrest movement compensated, up to horizontal position
- Tilting of the backrest synchronized with the elongation of the leg rest
- Double-articulated headrest VALE
- High enveloping backrest
- Complete symmetry, usable by both right and left-handed professionals
- 24 DC linear actuators
- Safety stops on backrest and lifting arm
- Automatic program for complete return to the patient lowering position (“zero”)
- Three user programmable customized working positions
- Automatic rinse program with return to the last working position
- Low voltage controls: 5 V
- Power supply with automatic selection 110V /230V
- Joystick control, on the base
- Soft-start and soft-stop movement
- Double-articulated headrest model ELLE MOBILE (OPTION)
- Head rest model ELLE-2 MOBILE (OPTION)
- Magnetic cushion C95 (OPTION)
- Magnetic cushion C2002 (OPTION)
- Multi-articulated headrest model “UNI tappezzato” (OPTION)
- Multi-articulated headrest model “LIGHT” (OPTION)
- Right and/or left armrest (OPTION)
- Electronic board with lamp activation relay (OPTION)
- Rotation system around the vertical axis under the chair base (OPTION)
- Infrared hand remote control (OPTION)
- Children booster seat (OPTION)
- ENT footrest (OPTION)
- Seamless memory foam upholstery (OPTION)
- Handmade soft-foam upholstery (OPTION)
- Handmade soft-foam upholstery with contrasting color stitching (OPTION)
- Fully electromechanical upward, downward and tilt movements of the backrest
- Backrest movement compensated, up to horizontal position
- Tilting of the backrest synchronized with the elongation of the leg rest
- Double-articulated headrest VALE
- High enveloping backrest
- Complete symmetry, usable by both right and left-handed professionals
- 24 DC linear actuators
- Safety stops on backrest and lifting arm
- Automatic program for complete return to the patient lowering position (“zero”)
- Three user programmable customized working positions
- Automatic rinse program with return to the last working position
- Low voltage controls: 5 V
- Power supply with automatic selection 110V /230V
- Joystick control, on the base
- Soft-start and soft-stop movement
Max Height 880mm
min height 550mm
Backrest tilit angle 0-76
Width 615 mm
total length 1750mm
Gross weight 110kgs
net weight 80kgs
Max lift capability 210 kgs
trenedelenburg +18
Rotation angle +/- 160
Class B
