Owandy Radiology RX DC Intra Oral X-Ray
SKU
DW2700

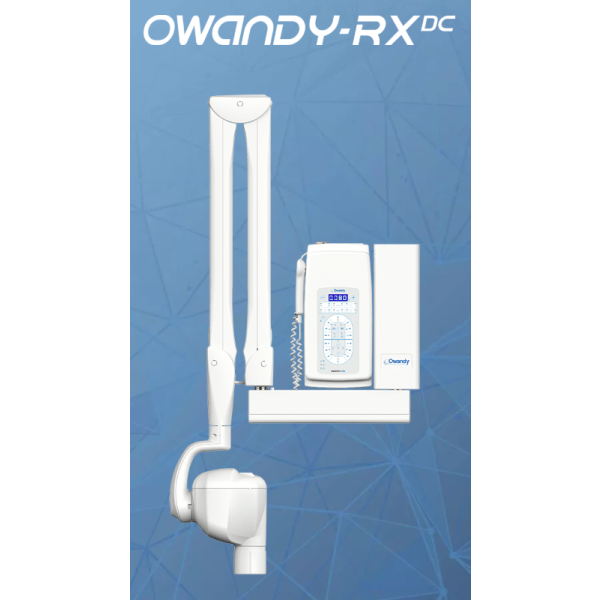

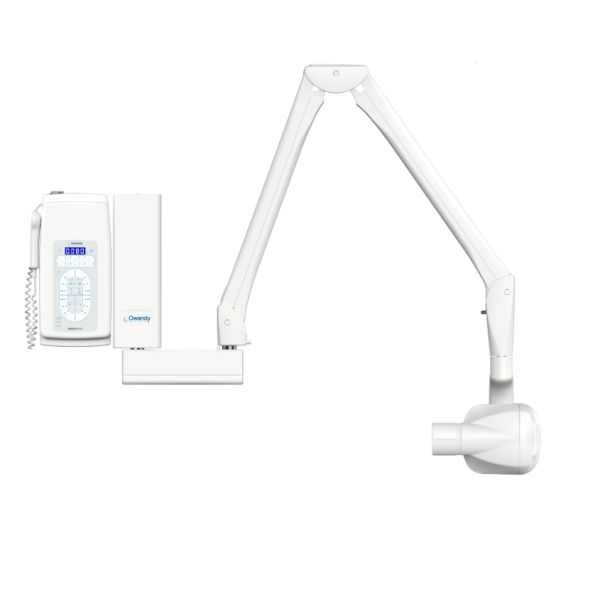

Owandy RX DC X-Ray
The Owandy RX DC X-Ray is a high-frequency intraoral imaging system designed to deliver precise, high-quality diagnostic images with reduced radiation exposure. Using advanced DC technology, it ensures consistent output and improved patient safety, making it ideal for modern dental practices.
With adjustable voltage (60–70 kV) and highly accurate exposure timing, the system provides reliable and repeatable results across a range of imaging methods, including film, digital sensors, and phosphor plates.
Its lightweight, flexible arm allows smooth positioning and easy integration into any clinical setup, while the compact, ergonomic design enhances usability and workflow efficiency.
Key Features
- High-frequency DC technology for lower radiation
- Precise and consistent image quality
- Compatible with film and digital systems
- Flexible arm with multiple length options
- Compact, user-friendly design
Technical Specifications – OWANDY-RX DC
The OWANDY-RX DC is a high-performance direct current dental X-ray system designed for precision imaging and reliable operation. It complies with Class I, Type B standards (CEI EN 60601-1:2007), ensuring safety and quality in medical environments.
Electrical & Power
- Supply Voltage: 115/230 V, single-phase, 50/60 Hz
- Power Input: 1.4 kVA
X-ray Performance
- High Voltage Range: 60 to 70 kV
- Anode Current: 4 to 8 mA
- Focus Size: 0.7 mm
- Total Filtration: Equivalent to 2 mm Al at 70 kV
- Leakage Radiation: < 0.25 mGy/h
Technology & Operation
- Technology: Direct current (DC)
- Exposure Timer: Adjustable from 0.02 to 3.2 seconds
Physical Characteristics
- Head Weight: 5.5 kg
- Total Weight: 19.5 kg
- Arm Extension Options: 41 cm / 82.5 cm / 110 cm
Configuration Options
- Mobile version available
- Wireless capability
Accessories
- Long cone (31 cm)
- Long rectangular cone (31 cm)
