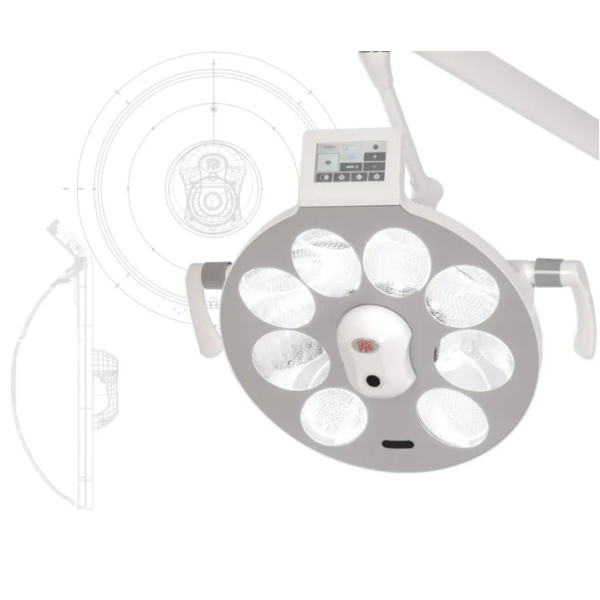

Faro B75 with Integrated 4K Cam Dental and Surgical LED Ceiling Light
B75 WITH INTEGRATED 4K
DIGITAL CAMERA 4K
FOR GREATER PRECISION
AND ACCURATE, READY TO USE ARCHIVE
B75 is designed to accommodate a 4K digital camera for a more precise, reliable and comfortable dental practice.
Ideal for photographing, filming, comparing and sharing photos and videos both live and remotely. The foot control ensures a hands-free practice without interruptions and distractions.
SKU
DW1575
B75 THE DENTAL LAMP
Video: https://youtu.be/LHCOjqoSmEM
MAXIMUM PERFORMANCE AND COMFORT TO WORK WITH BOTH SURGICAL AND DENTAL SETTINGS
B75 is the breakthrough in dental lighting: a dental lamp that integrates surgical and dental features in one single device.
B75 lamp is equipped with two independent LED spots, the round one for surgery, with an intensity of illumination higher than 110.000 LUX, and the elliptical one, for dental use and it comes with an exclusive project of reflected light able to ensure the highest light quality, premium performance and visual comfort.
Conceived and realized with materials selected to guarantee light weight, durability and easy cleaning following the principles of the circular economy to add the value of sustainability
Universal Ceiling and Unit mount system
Included 48VDC Transformer (with medical power supply 110-240VAC 50/60Hz)
PRODUCT SPECIFICATIONS
CHARACTERISTICS | SURGICAL | DENTAL | ||||
|---|---|---|---|---|---|---|
COLOR TEMPERATURE (K) | 5000K | COMPOSAVE | 4000K | 5000K | 5700K | COMPOSAVE |
POWER SUPPLY | 48VDC (with medical power supply 110-240VAC 50/60Hz) | |||||
MAX. ABSORBED POWER | 60 Va • (60 VA – 74VA)* | 24 VA • (24VA – 40VA)* | ||||
LIGHT SPOT DIMENSION | 250 | 200X100 | ||||
MAX. INTENSITY (LUX) | 110.000 (at 1m) 160.000 (at 800mm) | 11.000 (at 1m) | 50.000 (at 700mm) | 11.000 (at 700mm) | ||
MIN. INTENSITY (LUX) | 12.000 (at 1 m) | 6.000 (at 700 mm) | ||||
D10 AT 1 M | Ø 220mm | |||||
D50 AT 1 M | Ø 150mm | |||||
CRI | 98 | |||||
R9 | 97 | |||||
Rf | 98 | |||||
Rg | 102 | |||||
EXTERNAL DIAMETER OF THE HEAD | 445 mm | |||||
ROTATION SYSTEM | 3° Asse | |||||
HEAD ROTATION > 360° | ● | |||||
VERSION WITH DIGITAL 4K CAMERA OR ARRANGED FOR IT | ● | |||||
COLOUR TOUCH DISPLAY | ● | |||||
OPTICAL SENSOR | ● | |||||
HEAD WEIGHT (WITHOUT CAM) | 5.4 kg | |||||
HEAD WEIGHT (WITH CAM) | 5.6 kg | |||||
LAMP WEIGHT (HEAD + ARM) | 12.5 kg c.a | |||||
LAMP WEIGHT WITH CEILING APPLICATION | 25 kg c.a | |||||
- The technical data indicated are typical values subject to tolerance More information in the user manual
