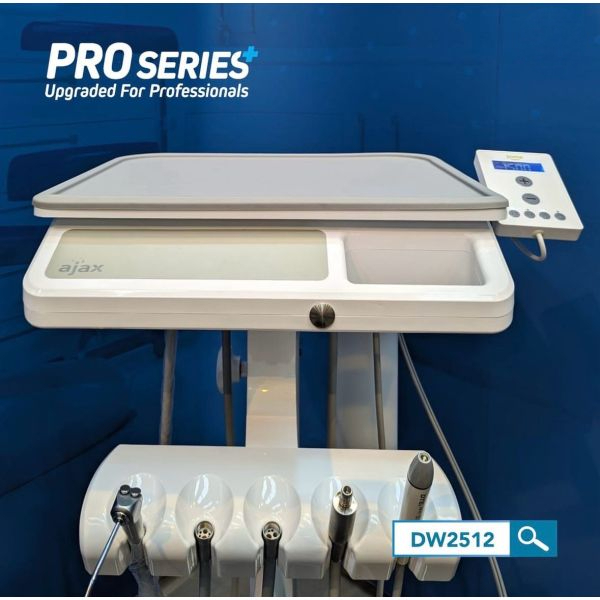

AJAX 'PRO SERIES' DENTAL CART ALL ELECTRIC ALL LED *7 YEAR WARRANTY*
The AJAX Pro Series Cart is a versatile, plug-and-play mobile dental unit designed for efficiency and convenience in any clinical setting. Requiring only an air and electric supply, it features LED fibre optics for high-speed turbine use, an LED electric micromotor compatible with 1:5 increasing red band handpieces, and a built-in LED Woodpecker Satelec/DTE-style piezo scaler. A 3:1 syringe and integrated clean water system ensure smooth daily operation, while the durable floor box with on/off switch and locking castors provide stability and ease of movement. In stock and supplied with delivery, with an additional 5% discount available at checkout
SKU
DW2512
- Versatile AJAX Pro Series Mobile Cart designed for flexible use in any dental environment
- Plug-and-play setup – only requires air and electric supply for quick installation
- ‘Never Without Light’ design with integrated LED systems for enhanced visibility
- LED fibre optics for high-speed turbine performance and precision
- LED electric micromotor compatible with 1:5 increasing red band handpieces
- Built-in LED Woodpecker Satelec/DTE-style piezo scaler for efficient scaling
- 3:1 syringe included for reliable daily functionality
- Integrated clean water system for improved hygiene and convenience
- High-impact floor box with on/off switch for easy control
- Durable construction with locking high-impact castors for stability and mobility
- Compact, mobile solution ideal for surgeries, pop-up clinics, or additional workstations
- In stock and includes delivery
- Extra 5% discount available at checkout
A Swiss developed Brushless electric micromotor capable of driving a Red Band 1:5 Contra angle using high speed burs with huge torque..saving for example 25 mins on a crown prep
Can also accomodate normal contra angle 1:1 blue band for conventional use
Technical parameters
Motor: brushless DC motor
Type: internal water spray
Application: dental restoration-dental calculus removal
Speed range: 2000 rpm-40000 rpm
Max torque: 3.5 N.cm
Torque control: no
Input voltage: AC24V
Output power: 120W
Water flow: (0.2Mpa): ≥65ml/min
Temperature rise: 40000rpm running 3 min, no more than 10° higher than the room temperature
Noise: ≤45dB
Light source: LED
Light source luminance: >7000LUX
Bearing: lubricating free ball bearing
Disinfection: 135°C high temperature disinfection
Port: DC male connector 5.5mm*2.1mm
Net weight of the motor: 63.4g
Motor dimension: diameter 21mm*70.5mm (exposed dimension: 21mm*40.6mm)
Net weight of the control box: 296g
Driving board: 120*110*23mm
Voltage boosting board: 85*52*30mm
Dimension of the control box: 135*63*19mm
Gross weight of the product: 1KG
Guarantee time: 7 years
